【CAD模擬專案.分析】Altair SimSolid 2019 CAD元件進行結構分析

通過在數分鐘內對功能齊全的CAD元件進行結構分析,SimSolid是為設計師,專案師和分析師提供的改變遊戲規則的模擬技術。
它消除了幾何圖形的準備和網格劃分:這是在一般結構模擬中執行的兩個最耗時,專業知識廣泛且易於出錯的任務。

可以在實際條件下快速模擬多種設計專案。可以使用任何常見格式的早期CAD模型。
SimSolid的不精確幾何公差意味著與CAD內嵌的模擬工具不同,在分析設計之前無需簡化複雜的幾何。

Altair SimSolid 2019 的功能:

以下是安裝Altair SimSolid 2019 可以體驗的一些驚人功能,請記住功能可能有所不同,並且完全取決於您的系統是否支援它們。


可用的解決專案:
線性靜態,模態,熱,耦合熱應力,材料非線性,幾何非線性,瞬態動力學(時間,頻率和隨機響應)

支援的連線:
粘結螺栓和滑動螺栓,虛擬連線器,焊縫(點焊,雷射和倒角),鉚釘

邊界條件:
固定,滑動,力,壓力,重力,熱,慣性,慣性釋放,靜液壓,軸承,鉸鍊和遠端載荷

CAD連線:
讀取所有常見的CAD檔案格式,內含:CATIA,NX,PTC / Creo,Inventor,Fusion 360,SOLIDWORKS,Onshape,JT,STEP,VDA,Parasolid,ACIS,PLMXML,CGR,STL

結果類型:

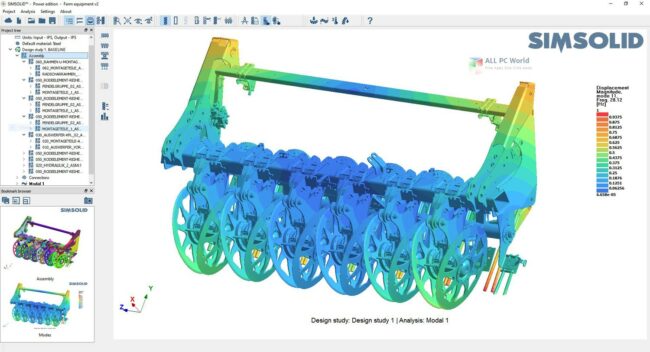

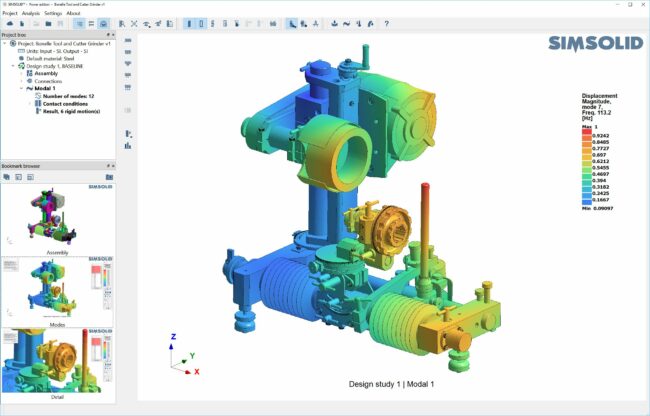

具有位移,應力和應變,變形動畫,最大/最小標籤,點探針,XY圖,反作用/接觸力,螺栓/螺母力,點焊力,頻率和模式形狀,模態參與因子,安全因子的等高線圖

附加功能:
剛性零件,螺栓/螺母緊固,模態參與因素

【CAD模擬專案.分析】Altair SimSolid 2019 CAD 網址:
https://www.altair.com/simsolid/

Altair SimSolid 2019 Overview

By performing structural analyses on fully featured CAD assemblies within minutes, SimSolid is the game-changing simulation technology for designers, engineers, and analysts. It eliminates geometry preparation and meshing: the two most time-consuming, expertise-extensive and error-prone tasks performed in a conventional structural simulation.


Multiple design scenarios can be simulated quickly under real-life conditions. Early CAD models, in any common format, can be used. SimSolid tolerance of imprecise geometry means that, unlike CAD-embedded simulation tools, there is no need to simplify complex geometries before analyzing designs.

Features of Altair SimSolid 2019

Below are some amazing features you can experience after installation of Altair SimSolid 2019 please keep in mind features may vary and totally depends if your system support them.

Available Solutions

Linear statics, modal, thermal, coupled thermal-stress, material nonlinear, geometric nonlinear, transient dynamics (time, frequency and random response)

Supported Connections

Bonded and sliding bolts, virtual connectors, welds (spot, laser, and fillet), rivets

Boundary Conditions

Immovable, sliding, force, pressure, gravity, thermal, inertia, inertia relief, hydrostatic, bearing, hinge and remote loads

CAD Connectivity

Reads all common CAD file formats including: CATIA, NX, PTC/Creo, Inventor, Fusion 360, SOLIDWORKS, Onshape, JT, STEP, VDA, Parasolid, ACIS, PLMXML, CGR, STL

Result Types

Contour plots with displacements, stress & strains, deformed shape animation, Max/min labels, point probes, XY plots, reaction/contact forces, bolt/nut forces, spot weld forces, frequencies and mode shapes, modal participation factors, safety factors

Additional Capabilities

Rigid parts, bolt/nut tightening, modal participation factors
